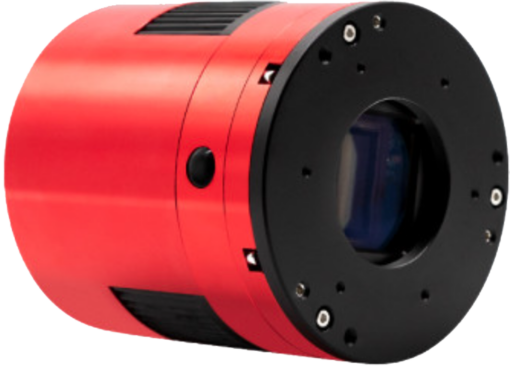

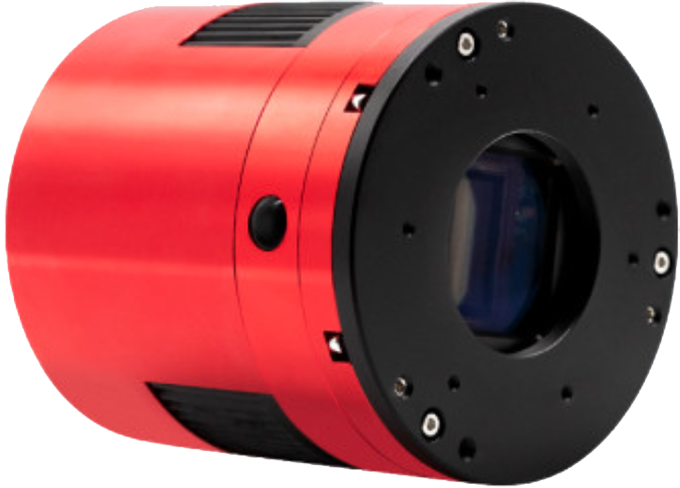

Camera ZWO ASI 2600 MM Pro

3 072,00  incl. VAT - 2 560,00  excl. VAT

APS-C format camera recommended for eShel and Whoppshel spectrographs

All about the product:

Description

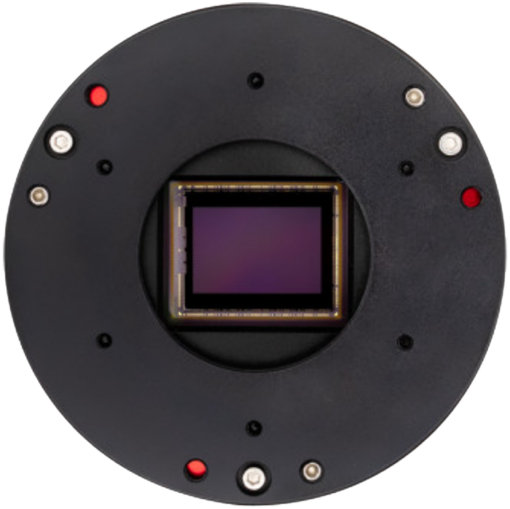

This camera is equipped with a SONY back-illuminated IMX571 CMOS sensor in APS-C format and 16-bit dynamic range. The ASI 2600 MM Pro has very low read noise and no amp glow.

In addition, its quantum efficiency of 91% at 460nm is particularly useful for use in spectroscopy where it is desired to have a signal in the blue part of the spectrum.

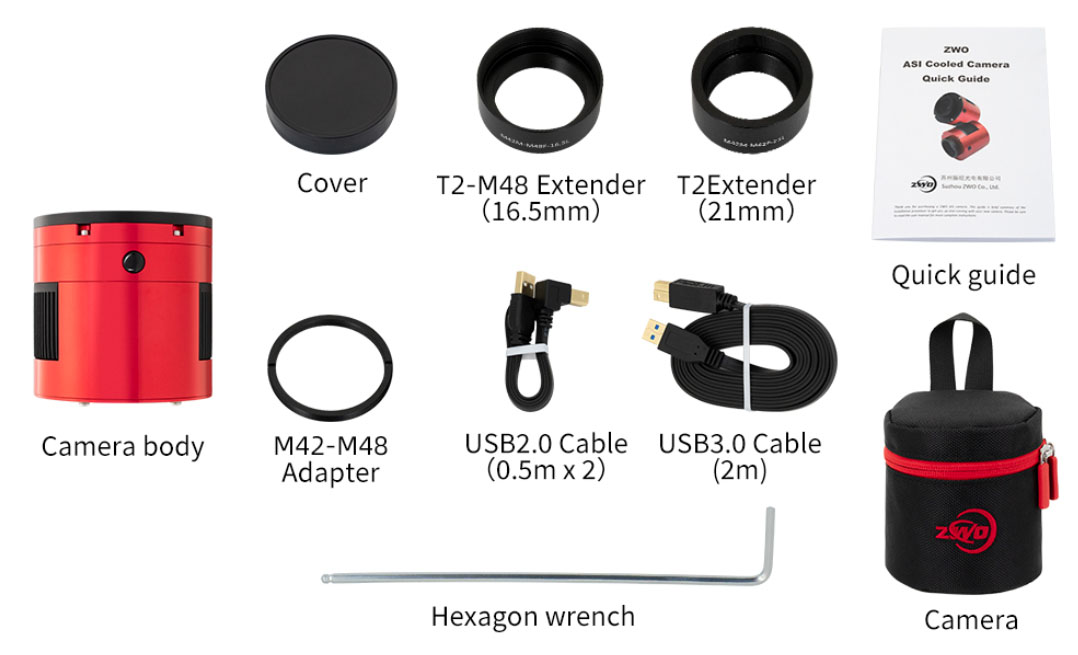

The camera comes with the following accessories:

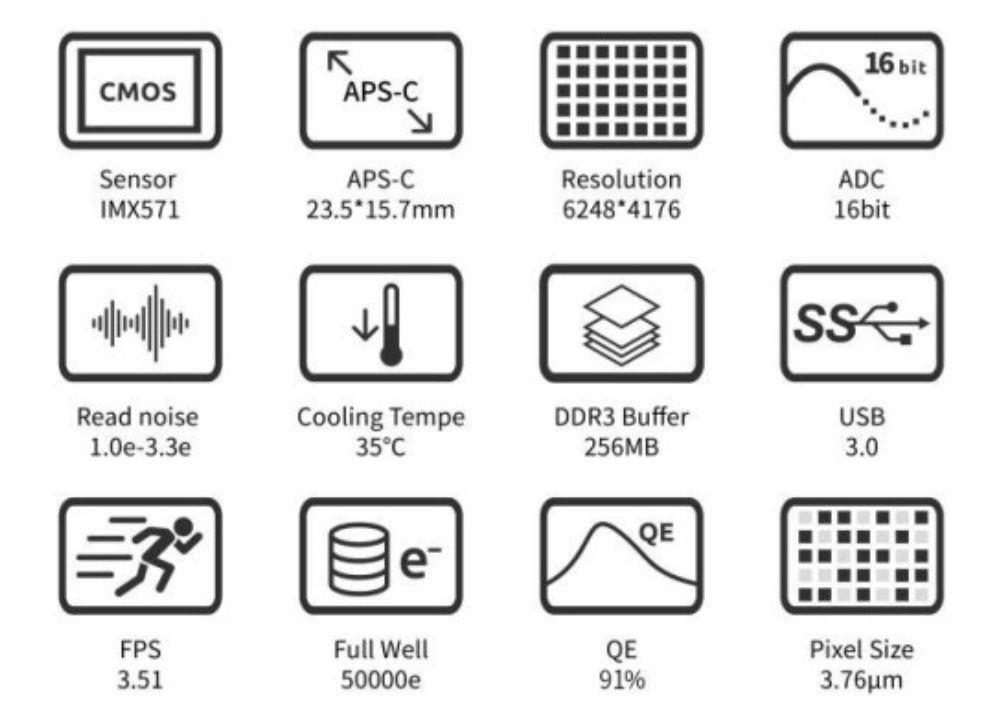

Specifications



Sensor : SONY IMX571 CMOS
Diagonal : 28,3mm
Sensor area : 23.5 x 15.7 mm
Resolution: 26 Mega Pixel 6248 x 4176
Pixel size : 3.76μm
Shutter : Rolling shutter
Exposure Range: from32μs to 2000s
Read noise : 1.0e- to 3.3e

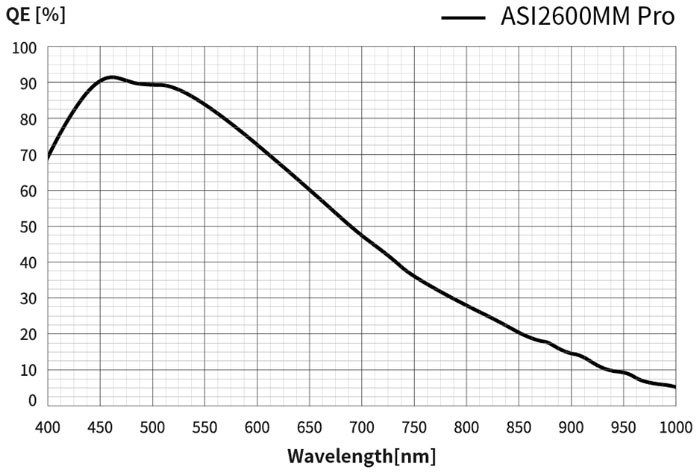

QE peak: 91% @ 460nm
Full well: 50000 e-
ADC : 16bit
DDRIII Buffer : 256MB
Interface: USB 3.0/USB 2.0
Adaptator: M42 x 0,75
Protect window:: D60-2 AR

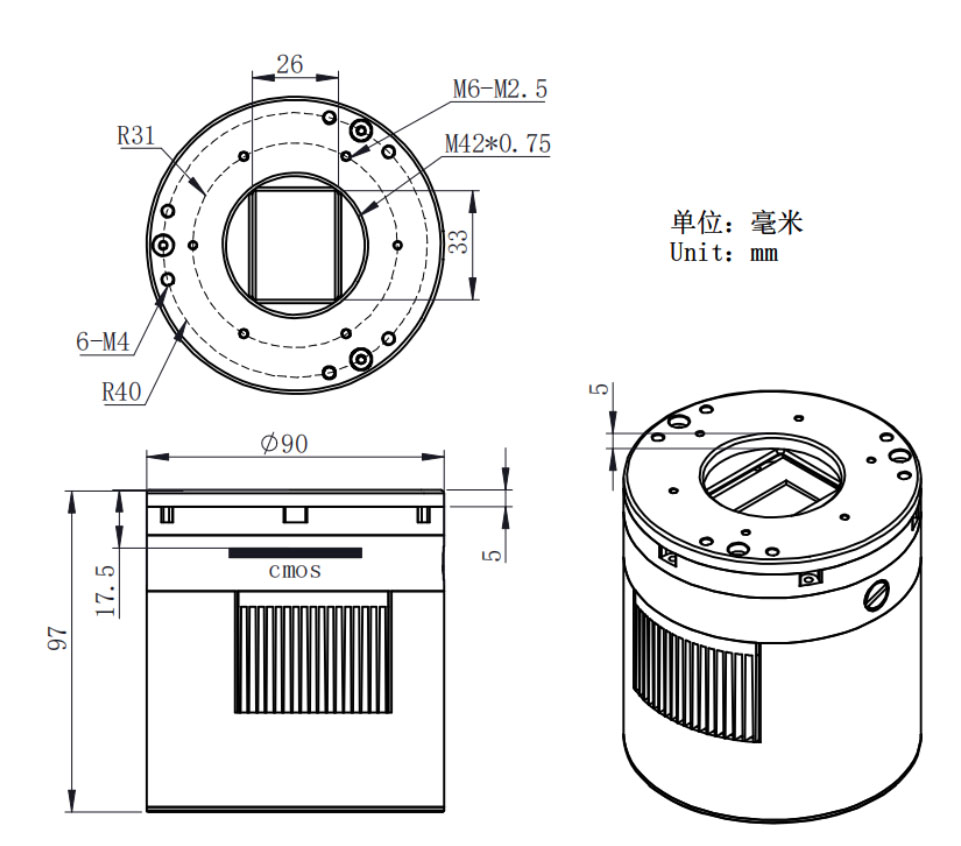

Dimensions: 90mm in diameter, length: 97mm
Weight: 700g
Backfocus : 17,5mm
Cooling: Regulated Two-Stage TEC
Delta T: 35°C below ambient

Camera Power consumption: 1.15A at 5V
Cooler Power consumption: 12V at 3A Max

Working Temperature: -5°C—50°C
Storage Temperature: -10°C—60°C
Working Relative Humidity: 0%—80%
Storage Relative Humidity: 20%—95%
