Spectroscopy, from initiation to performance
321,60 € incl. VAT - 268,00 € excl. VAT

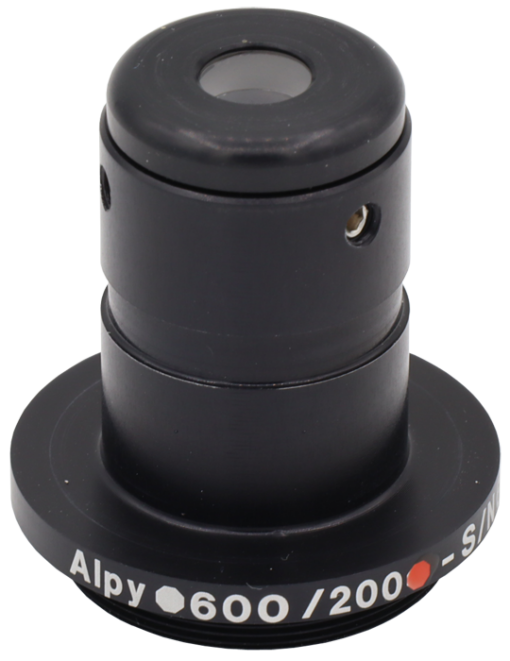

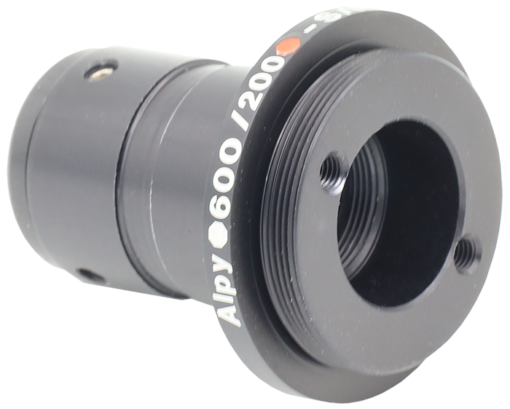

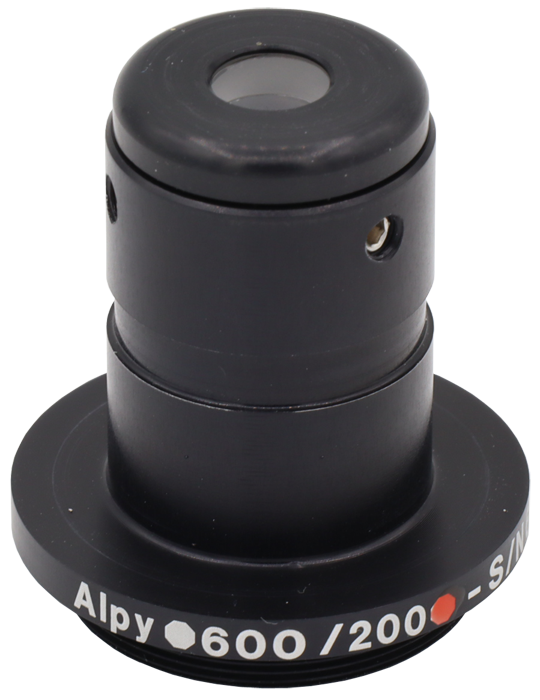

Alpy 200 optical core module (for those who already have an Alpy 600)
Description |
Shelyak ref. |
Acc. type |
Included |
Comment |
Guiding module |
PF0036 |
Guiding module |
To visualize the slit entrance during observation. Includes a 23μm mirror slit. |
|
Calibration module |
PF0037 |
Calibration module |
For simple dark, calibration and flat images |
Description |
Shelyak ref. |
Included |
Material (% reflexion)
|
Mirror size
|
AR coating
|
Comment |
Standard slit 23μm |
SE0140 |
Chromium (55%) |
11 x 10 mm |
400 – 700 nm |
Comes with Alpy calibration module. |
|
Standard slit 23 μm |
SE0136 |
 |
Nickel (not polished) |
D = 15mm |
Real (physical)l hole, no coating |
NON-reflective slit. Contains one 25 μm hole, one 3 mm hole, and 4 slits: 25, 50, 100 and 300μm. |
Photometric slit |
SE0145 |
Chromium (55%) |
11 x 10 mm |
400 – 700 nm |
Requires the guiding module. |
|
Slit 35μm |
SE0150 |
Chromium (55%) |
11 x 10 mm |
400 – 700 nm |
Requires the guiding module. |
|
Slit 50μm |
SE0151 |
Chromium (55%) |
11 x 10 mm |
400 – 700 nm |
Requires the guiding module. |
|
High-performance slit |
SE0247 |
Protected aluminium (92%) |
13 X 12,5 mm |
350 – 800 nm |
Requires the guiding module. |
|
Mirror slit 10μm |
SE0253 |
Chromium (55%) |
12,2 x 13 mm |
400 – 700 nm |
Requires the guiding module. Very narrow slit for Alpy 600 (for use with small-pixel CMOS cameras) |
For those who already have an Alpy 600 spectrogrpahe, this optical core module gives you a low-cost Alpy 200.
You’ll need to use the mechanical part of your Alpy 600 as well as the slit, which is not supplied with this module.
Note: It was Robin Leadbeater who first suggested – several years ago – that we make a variant of the Alpy 600 for observing weak targets. Thank you Robin !
– optical module with grism of 200 gr/mm
– supplied without slit
– supplied without other mechanical parts.
